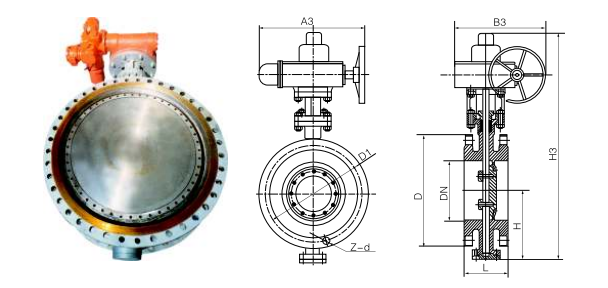

CY420系列三偏心法兰式蝶阀

Size/规格：DN50-DN2000
Design/法兰设计标准：EN1092
End/连接法兰：PN6/10/16/CL150/CL300 etc.
Work Pressure/工作压力：PN6/PN10/PN16/PN40
Work Temperature/工作温度：-40~600
Sealing Type/密封方式：SS+PTFE
Operation Type/操作方式：Handwheel, Worm gear,Electric, ETC.

1. 开启力矩小，灵活方便，省力节能；
Small opening torque, flexible and convenient, labor-saving and energy-saving;
2. 三维偏心结构，密封性能可靠；
Three-dimensional eccentric structure, reliable sealing performance;
3. 耐高压，耐腐蚀，耐磨损，使用寿命长；
High pressure resistance, corrosion resistance, abrasion resistance, long service life;
