成套阀门

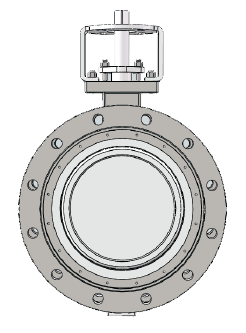

CY340系列高性能法兰式蝶阀


Size/规格:DN80-DN900

Design/法兰设计标准:EN1092
End/连接法兰:PN6/10/16/CL150/CL300
Work Pressure/工作压力:PN6/PN10/PN16
Sealing Type/密封方式:PTFE
Operation Type/操作方式:HANDWELL, GEARBOX, ETC.


1. 耐火结构,按API607和BS6755第二部分经过为烧试验;
Fixed-proof valve is tested to API607 4th edition and BS6755 part II;
2. 阀轴可靠性,在轴的顶端装有固定环,防止轴上部移窜出压盖;
Fixed axis, fixed collar is installed in the top of axis to avoid it  to move out of gland;
3. 有多种不同的材料提供选择;
Various materials available;
4. 产品具有优康的控制特性,高节范围大。阀座维修保养方便;
Excellent for both On-off and control appllication,Wide adjustable ability, and Convenient to maintain seats;
